Preferences

The Preferences section allows you to specify your AbatWebConsole preferences.

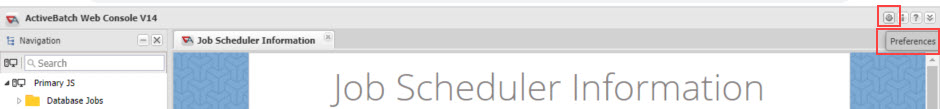

Click on the icon outlined in red, in the image below.  It will launch the Preferences window.





Preferences are categorized by the tabs that run across the top of the page.

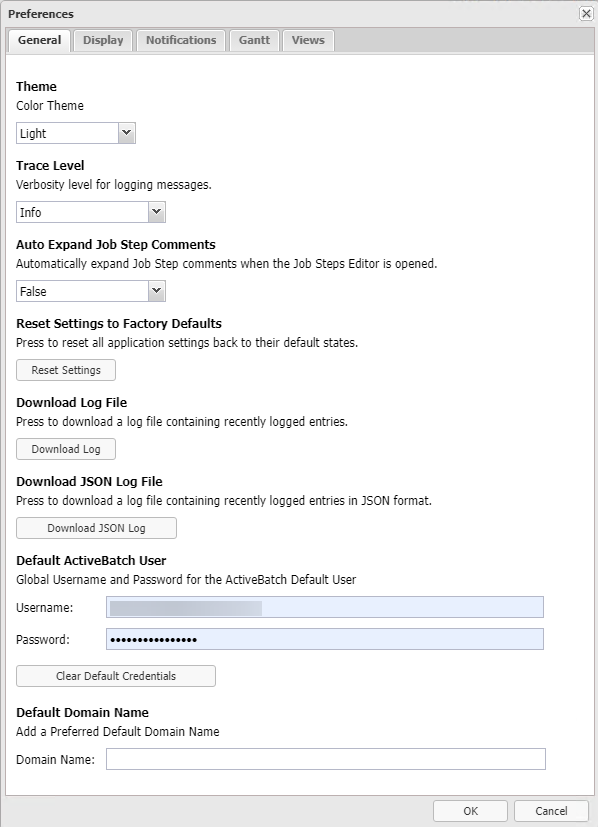

Preferences - General



This tab supports a variety of preferences.





General Options Description

Color Theme

This option controls the UI's color theme. Choices include light or dark.

Trace Level

This option indicates what the tracing level for the Web Console should be set to. The default level is Info. Setting the level to a higher trace level may affect performance.

Auo Expand Job Step Comments

This option indicates whether to automatically expand Job Step comments when the Job Step Editor is opened.

Reset Settings to Factory Defaults

This operation indicates that you want to reset all settings and views back to their default states. Note: There is no “undo” for this operation so please exercise caution.

Download Log File

This operation will cause a text log file to be produced that contains recently logged entries.

Download JSON Log File

This operation will cause a JSON formatted log file to be produced that contains recently logged entries.

Default ActiveBatch User

This section allows you to store a default ActiveBatch Username and Password when accessing Job Schedulers. The button “Clear Default Credentials” allows you to clear and erase any stored credentials.

Default Domain Name

This option allows you to store a default domain name to be used when only a hostname is specified.

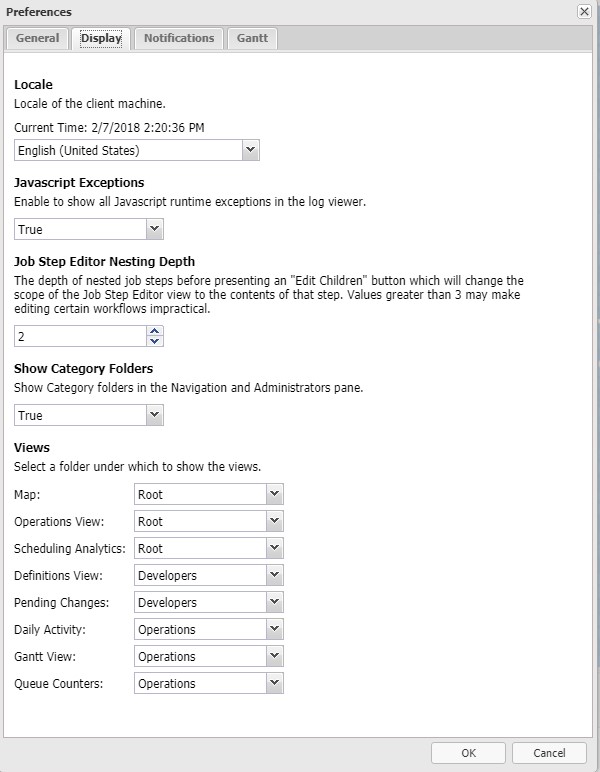

Preferences – Display

This tab allows you to specify Display preferences.





Display Option Description

Locale

This option allows you to set the Locale and how date and time formats are to be displayed.

Javascript Exceptions

This option allows you to set when a Javascript exception is to be displayed in the Log Viewer. The default is True.

Job Step Editor Nesting Depth

This option controls the depth of nested job steps before presenting an “Edit Children” button which will change the scope of that step. Values greater than 3 may make editing certain worflows impractical.

Show Category Folders

This Boolean option indicates whether to show category folders in the Navigation and Administration pane.

Views

This option allows you to select where each view is to be presented in the Navigation Tree.

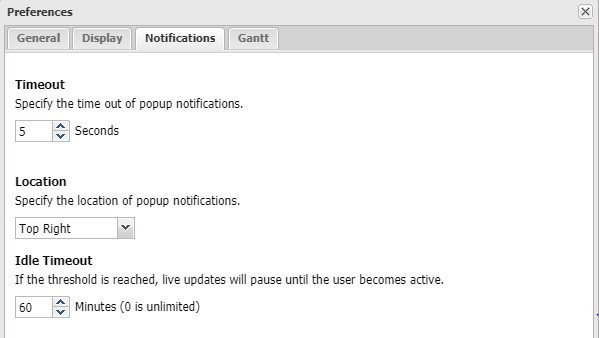

Preferences – Notifications

This tab controls the manner in which notifications are presented.





Notification Options Description

Timeout

This option indicates how long a pop-up notification should appear.

Location

This option indicates where the notification is to appear.

Idle Timeout

This option indicates the number of minutes of idle time, when live updates will stop (pause) until the user becomes active.

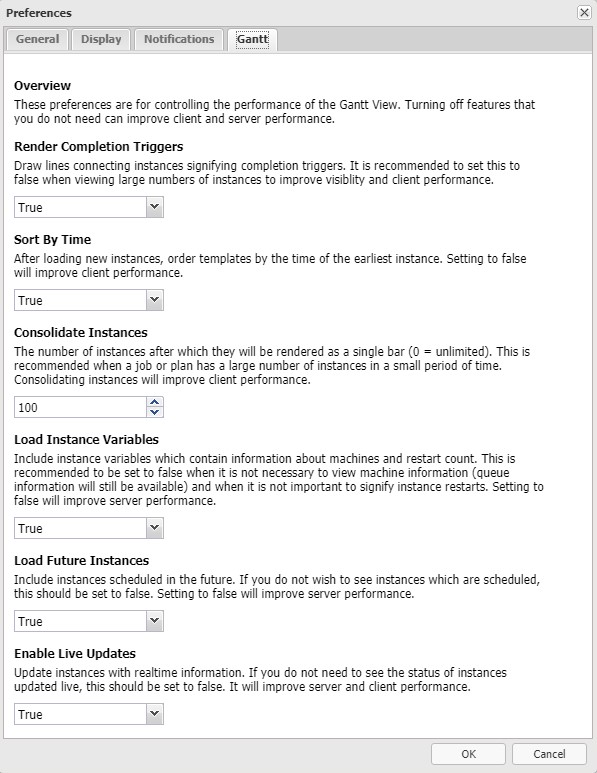

Preferences – Gantt

This tab allows you to specify Gantt View preferences.





Display Options Description

Render Completion

This Boolean option controls whether lines connecting instances signifying completion triggers are drawn. Default is True.

Sort by Time

This Boolean option indicates whether after loading new instances, order templates by the time of the earliest instance. Default is True.

Consolidate Instances

This option controls the number of instances after which they will be rendered as a single bar (0=unlimited). Default=100.

Load Instance Variables

This Boolean option controls whether to include instance variables which contain information about machines and restart count. The default is True.

Load Future Instances

This Boolean option controls whether to include instances scheduled in the future. The default is True.

Enable Live Updates

This Boolean option controls whether to update instances with real-time information. The default is True.



Preferences - Views

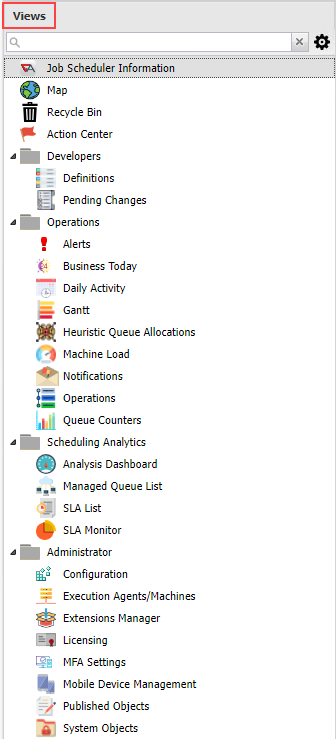

This option lets you reorganize and/or hide views as they are displayed in the Views pane (located in the lower left-hand corner of the UI, by default), depicted in the image below.

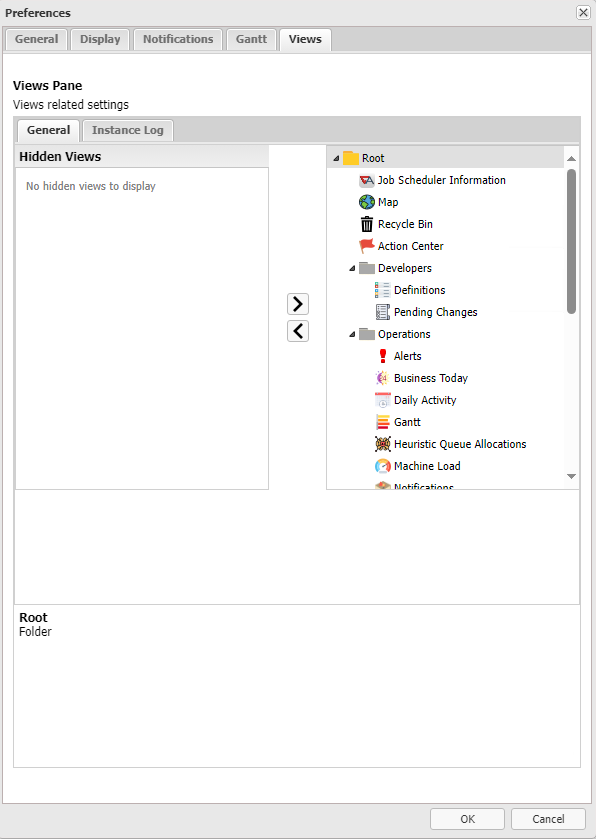

The Preferences > Views window depicted below is split into 2 panels.  On the left are hidden views (empty by default), and on the right are the visible views.





To hide a view, select the desired view(s) on the right-hand side of the window (the "visible views" panel), then click the "less than" (bottom) arrow icon. You will see the selected view(s) moved to the left side of the window (the "hidden views" panel). If you select a folder in the visible panel, then click the bottom arrow, all the views within the folder will be moved to the hidden views panel. When all of a folder's contents are hidden, the folder is not visible in the Views pane.



To show previously hidden views, select the view(s) in the hidden views panel, then click the "greater than" (top) arrow.  You will see the selected views moved to the visible panel, where they will be visible again in the Views pane.



To move around a view (out of its current folder, or within its current folder, but in a different position), click on the desired view in the visible views panel, drag your mouse to the desired location within the tree, then release the mouse. The view will be moved to your selected location. The folder itself cannot be moved.
